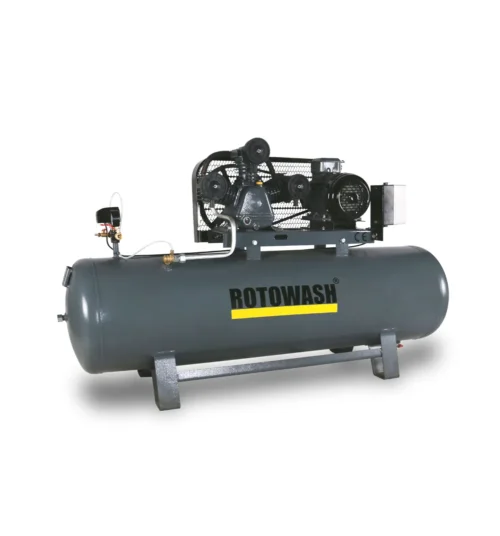

– Double Piston compressor block
– Air tank made of CE certified P265GH pressure vessel steel
– 380V/3 phase/50Hz IE2 efficiency class IP55 main motor
– Belt-pulley mechanism drive system
– Specially designed fan type pulley
– Long-life bearings
– Air intake filter and silencer
– Whisk lubrication system
– Oil level indicator
– Factory filled oil
We would be happy to assist you - just call us or send us an email.
Support Line: +90 232 486 33 50
CONTACT FORM| Order No. | : | 96502 |
| Model | : | İki Kademeli |
| Pressure | : | 12,5 bar |
| Warehouse | : | 500 litre |
| Engine | : | 4 kw |
| Engine | : | 5,5 hp |
| Capacity | : | 325 m³/dk |
| Power | : | 400 V 50 hz |
| Residual Current Relay | : | Var |
| Size (En x Boy x Yükseklik) | : | 65 x 184 x 130 |
| Weight | : | 330 kg |
