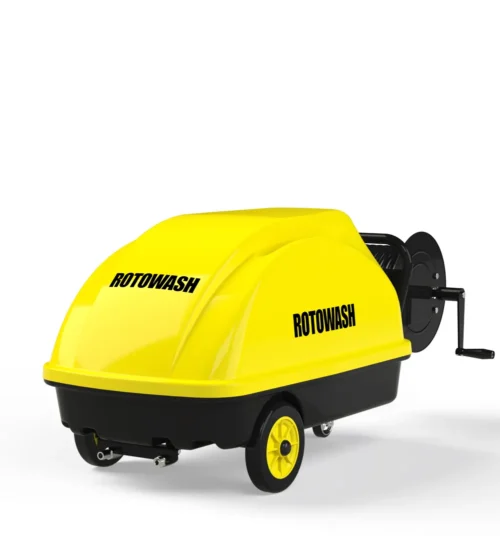

With its bearing hose reel, SH series Turbo Plus trigger models, which are among the leading models in its class, have a water flow rate of 900 liters per hour with a working pressure of 150-180-200-250 bar. It provides extra convenience to reach more distant pollution with its standard 25 meter hose and bearing hose reel. It provides easy and comfortable hose collection after operation, powerful three-phase motor, leakage current circuit breaker, safety of use and the ergonomic design of the machine and its wide wheels, providing easy transportation and excellent maneuverability. It provides high quality application with its IE2 IP55 protected electric motor, brass head and ceramic piston pump.

We would be happy to assist you - just call us or send us an email.

Support Line: +90 232 486 33 50

CONTACT FORM

TECHNICAL SPECIFICATIONS

Brand:ROTOWASH
Order No.:11198
Machine Type:25 mt lik Hortum Sarma Makaralı
Model:SH 2500 TURBO PLUS
Pump Type:Seramik Pistonlu
Max. Pressure:250 Bar Ayarlanabilir
Pump Safety System:By – Pass Sistemli Regülatör + Yüksek Basınç Boşaltma Limitörü aşırı Yüklenmeyi önler
Electrical Equipment System:Kaçak Akım, Faz Kontrol
Water flow rate:450-900 L/sa
Engine Power:5,5 kw / 7,5 hp
Voltage:3Ph / 400 V / 50 Hz
Felt System:Özel Çift Takım Sızdırmaz Keçeli
Piston System:Özel Alaşım Püskürtmeli Seramik (Kırılmaz, çatlamaz, çizilmez)
Powertrain:Direk akuple kaplin sistemi
Spray Gun Tetikten Kumandalı Start Stop Püskürtme Tabancası
Outer Body:Endüstriyel dayanıklılığa sahip yanmaz polyester
Wheels:200 mm lik 2 arka teker 75 mm lik 1 ön teker taşıma kulplu yüksek manevra kabiliyeti
Hose ReelHigh Pressure Resistant Double Bearing Hose Reel
Hose:25 mt r2 Çift Kat Çelik Tel Örgülü
Standard Equipment:High Pressure Hose, Washing Gun, Hose Anti-Tangle System, 5 Mt Power Cable, Plug
Dimensions:63 x 145 x 59 mm
Weight :87 Kg
Areas of UseProduction line cleaning, Milking parlor cleaning,
Egg – Production facilities, Coop cleaning, Agricultural equipment cleaning, Barn cleaning, Production lines cleaning, Facade renovation, Field cleaning, Road works
